Industrial Checking And Measuring Metallurgical Microscope

Get a Price/Quote

Product Details:

Usage Industrial
Application Microstructure
Product Type Metallurgical Microscope (Microstructure)
Color White
Theory Metallurgical Microscope
Eyepieces Wide field WF10X(field number:Φ22mm)
Eyepiece Tube Trinocular inclined 30˚, can be shot in 100% light flux
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Industrial Checking And Measuring Metallurgical Microscope Price And Quantity

Minimum Order Quantity 1 Piece

Industrial Checking And Measuring Metallurgical Microscope Product Specifications

Color White
Usage Industrial
Application Microstructure
Working Stage Base size：300mmX250mm, Mechanical stage size：160mmX140mm, Moving range：Transersal :35mmx30mm Square Meter (m2)
Product Type Metallurgical Microscope (Microstructure)
Illumination BICM-100 - 6V30W halogen, Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device., BICM-100BD - 12V50W halogen, Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device.
Eyepieces Wide field WF10X(field number:Φ22mm)
Theory Metallurgical Microscope
Objective Achromatic BICM-100 (Equipped with bright field Objectives), BICM-100BD (Equipped with bright & dark field Objectives)
Eyepiece Tube Trinocular inclined 30˚, can be shot in 100% light flux

Industrial Checking And Measuring Metallurgical Microscope Trade Information

Payment Terms Cash in Advance (CID) Cash Advance (CA)
Supply Ability 10 Piece Per Month
Delivery Time 2 Week
Packaging Details Wooden Type
Main Export Market(s) Australia South America Western Europe Middle East Africa Central America Asia Eastern Europe North America
Main Domestic Market All India

Product Description

BICM-100/100BD Industrial inspection microscopes are suitable to observe surfaces structure and geometry of work piece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness work piece. Quickly and effectively locate the observation part of work piece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slide way, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.

Other Products in 'Metallurgical Microscopes ' category

Metallurgical Inverted Microscope Minimum Order Quantity : 1 Theory : Metallurgical Microscope Product Type : Metallurgical Microscope (Microstructure) Usage : Industrial Color : White Magnification : 100x, 200x, 400x upto 2000x Eyepieces : WF 10X22mm Application : Microstructure Objective Achromatic : INFINITY LONG WORKING DISTANCE PLAN Objective , 5X/0.1,10X/0.25, 10X/0.25, 20X/0.4 (S), 50X/0.75 (S) and 100X/1.25 (S, oil) Working Stage : Stage Size: 226mmX178mm, Travel: 40mmX40mm Square Meter (m2) Focus Range : 2 um Nanometer (nm) Illumination : Halogen 12V/50W Refelcted, EpiKöhler illumination, ISOCE

Send Inquiry

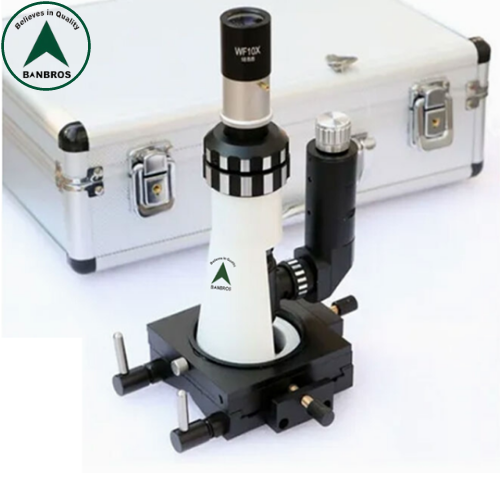

Metallurgical Microscope BPMM 100 Minimum Order Quantity : 1 Theory : Metallurgical Microscope Usage : Laboratory Voltage : 3.6V Volt (v) Color : White Magnification : 100X500X Eyepieces : WF10X(Φ18mm) Dimension (L*W*H) : 230×110×70(mm) Millimeter (mm) Objective Achromatic : 10X 40X/0.65(Metallographic Objective) Focus Range : 25mm Millimeter (mm)

Send Inquiry

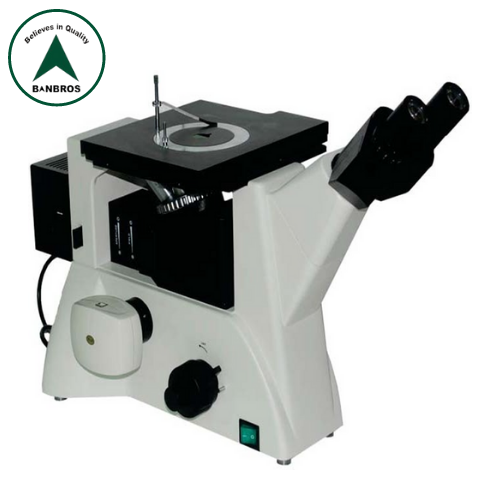

Metallurgical Microscope BMI 110BD Minimum Order Quantity : 1 Theory : Metallurgical Microscope Product Type : Metallurgical Microscope (Microstructure) Usage : Industrial Voltage : 220 Volt (v) Color : White Black Magnification : 50x,100x, 200x, 500x (Optional upto 2000x) Eyepieces : Wide Field WF 10x (Field Number Ø22mm) Application : Microstructure Working Stage : Overall Size: 242mm x 200mm and Moving Range: 30mm x 30mm Square Meter (m2) Illumination : 12V 50W, halogen lamp, Adjustable brightness Integrated field diaphragm, aperture diaphragm and system polarizer.Equipped with frosted glass and yellow, green and Blue Filter.

Send Inquiry

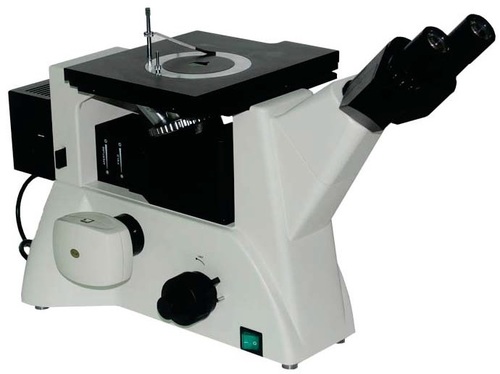

Inverted Metallurgical Microscope Model: Bmi-110 B Minimum Order Quantity : 1 Theory : Metallurgical Microscope Product Type : Microscope Model Usage : Laboratory Voltage : 110220 Volt (v) Color : White Material : Metal Drawtube : Trinocular
