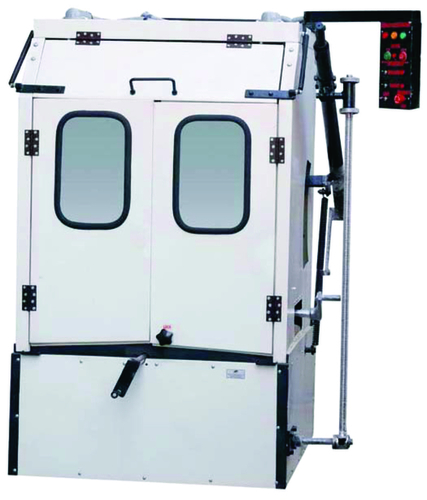

Metallographic Specimen Cut Off Machine
Product Details:
- Power Source Other
- Operating Type Automatic
- Power 2-15 Horsepower (HP)
- Dimension (L*W*H) 500 x 280 x 600 Millimeter (mm)
- Click to view more
X
Metallographic Specimen Cut Off Machine Price And Quantity
- 1 Unit
Metallographic Specimen Cut Off Machine Product Specifications
- Other
- Automatic
- 500 x 280 x 600 Millimeter (mm)
- 2-15 Horsepower (HP)
Metallographic Specimen Cut Off Machine Trade Information
- 10 Unit Per Month
- 1 Days
- All India
Product Description
Key Features
- Easy Operator Panel
| Technical Specifications | ACO-100 |
| Operation | Manual operation by moving motor to the sample. |
| Sample can be moved by lead screw. | |
| Cutting Action | By manual Cut-Off wheel Arcs down |
| Cutting Capacity | 100mm |
| Cut-Off Wheel Size | 12 (300mm) |
| Cutting motor Power | 3 HP, 2800 rpm |
| 3 Phase 415 Volts, 50Hz | |
| Coolant Motor Power | 0.1 HP |
| Coolant Tank | 50Ltr. Recirculating Coolant tank inbuilt |
| Vice | Self-Centring 360 rotation opening 4 jaw |
| Safety Feature | Emergency Stop Switch with Door limit Switch |
| Dimensions | 650mm X 800mm X 1450mm |
| Weight | 200 Kg. (approx.) |
