Metallurgical Microscope BPMM 100

Get a Price/Quote

Product Details:

Weight Net: 0.75kg Gross：0.90kg Kilograms (kg)
Color White
Voltage 3.6V Volt (v)
Usage Laboratory
Dimension (L*W*H) 230×110×70(mm) Millimeter (mm)
Theory Metallurgical Microscope
Magnification 100X-500X
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Metallurgical Microscope BPMM 100 Price And Quantity

Minimum Order Quantity 1 Piece

Metallurgical Microscope BPMM 100 Product Specifications

Dimension (L*W*H) 230×110×70(mm) Millimeter (mm)
Theory Metallurgical Microscope
Usage Laboratory
Voltage 3.6V Volt (v)
Focus Range 25mm Millimeter (mm)
Dimensions 230×110×70(mm) Millimeter (mm)
Eyepieces WF10X(Φ18mm)
Weight Net: 0.75kg Gross：0.90kg Kilograms (kg)
Color White
Objective Achromatic 10X 40X/0.65(Metallographic Objective)
Magnification 100X-500X

Metallurgical Microscope BPMM 100 Trade Information

Payment Terms Cash in Advance (CID) Cash Advance (CA)
Supply Ability 10 Piece Per Month
Delivery Time 2 Week
Packaging Details Wooden Type
Main Export Market(s) Western Europe Australia Eastern Europe Middle East Central America South America Asia North America Africa
Main Domestic Market All India

Product Description

BPMM-100 is a portable metallurgical microscope which used to identify the structure of various metal and alloy at site when it is unable to make metallographic specimen. This microscope also widely used in the metallographic analysis of metal material and the structure inspection of large metal piece.It is easy for you to analyze and study the images which have been captured, saved and input in site with the optional accessories, such as: CCD, Digital camera, Digital eyepiece, metallographic software.This is used to identify the structure of various metal and alloy at site when it is unable to make metallographic specimen. This microscope also widely used in the metallographic analysis of metal material and the structure inspection of large metal piece.It is easy for you to analyze and study the images which have been captured, saved and input in site with the optional accessories, such as: CCD, Digital camera, Digital eyepiece, metallographic software.

Other Products in 'Metallurgical Microscopes ' category

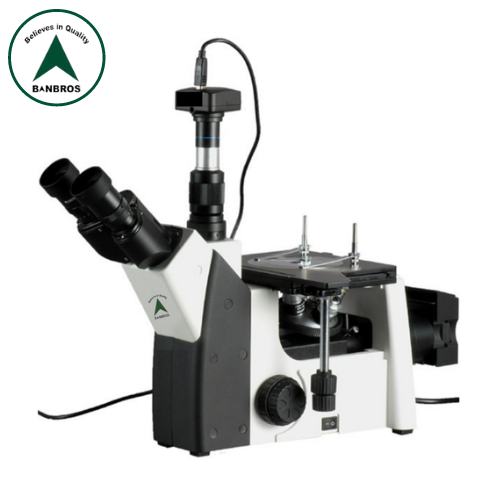

Metallurgical Inverted Microscope Minimum Order Quantity : 1 Theory : Metallurgical Microscope Product Type : Metallurgical Microscope (Microstructure) Usage : Industrial Color : White Eyepieces : WF 10X22mm Application : Microstructure Working Stage : Stage Size: 226mmX178mm, Travel: 40mmX40mm Square Meter (m2) View Head : Seidentopf Binocular / Trinocular Head Inclined 30°, Rotatable 360°, Interpupilary Focus Range : 2 um Nanometer (nm) Magnification : 100x, 200x, 400x upto 2000x Objective Achromatic : INFINITY LONG WORKING DISTANCE PLAN Objective , 5X/0.1,10X/0.25, 10X/0.25, 20X/0.4 (S), 50X/0.75 (S) and 100X/1.25 (S, oil) Illumination : Halogen 12V/50W Refelcted, EpiKöhler illumination, ISOCE

Send Inquiry

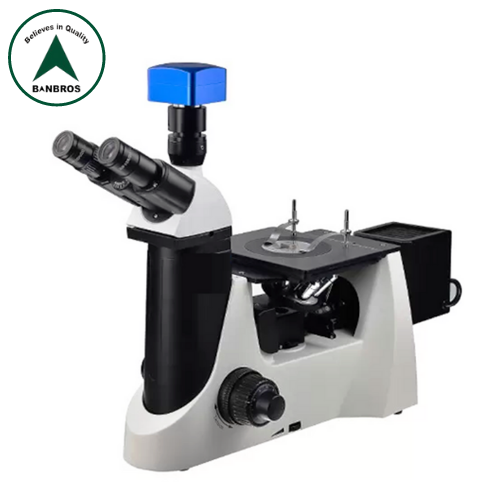

Metallurgical Microscope BDM 2000X Minimum Order Quantity : 1 Theory : Metallurgical Microscope Product Type : Metallurgical Microscope (Microstructure) Usage : Industrial Material : Plastic Color : White Eyepieces : WF10X/20mm, WF10X/18mm reticule eyepiece Application : Microstructure Working Stage : Mechanical stage with size 180x155mm,XY travel is 80x50mm with graduation of 0.1mm Square Meter (m2) Voltage : 100240V Volt (v) View Head : Trinocular head inclined at 30° Focus Range : Coaxial focusing knob, fine focusing is graduated in increment of 1um Millimeter (mm) Illumination : 12V 50W halogen lamp

Send Inquiry

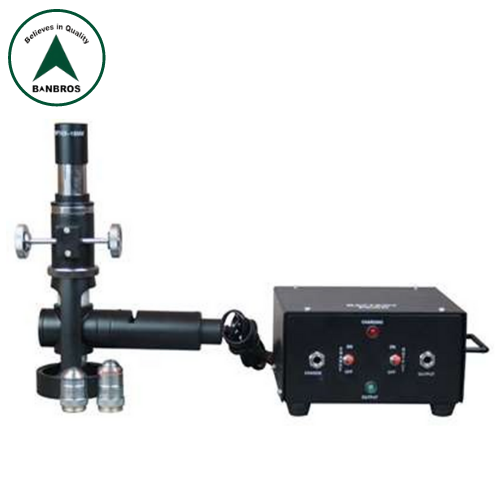

Portable Metallurgical Microscope Minimum Order Quantity : 1 Theory : Metallurgical Microscope Product Type : Metallurgiccal Microscope (Microstructure) Usage : Industrial Color : White Eyepieces : Eyepieces: 10x Application : Microstructure Magnification : Magnification: Upto 400X Objective Achromatic : Objectives: 5x ,10x, 20 X & 40x

Send Inquiry

Trinocular Upright Metallurgical Microscope Minimum Order Quantity : 1 Theory : Metallurgical Microscope Product Type : Metallurgical Microscope Usage : Laboratory Material : Steel Drawtube : Trinocular Voltage : 110240 Volt (v)
